Moving Crossbeam Machining Center

VW Series

VW-734

Intelligent, High-efficiency & Excellent precision

More comprehensive functions provide you perfect solutions

One & only :


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

Hartrol Premium

One of major 6 brands of self-made NC controllers Taiwan one and only Hartrol Premium controller


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

AI Technology

AI intelligent technology automatic tuning parameter maintains accuracy


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Angular head four pull bolt design

33% higher anti-cutting torque than the peers


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Z-axis four linear guideways

Increase by 30% in load capacity compared with peers with 2 linear guideways


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
Years

Ballscrews Support

X/Y-axis Ballscrews Support


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
.

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
mm

W-axis twin ballscrew server motor design

Positioning Accuracy can be assured within 0.03 mm

Hartrol Premium

Mechanism Design

Specifications

Related models

Hartrol Premium

透過AI技術不斷超越機器的極限

AI技術的運用，使精度不受環境因素影響，只要常溫廠房即可做到高精度的加工，而且加工效率不受工件重量以及刀具磨耗影響，只要搭載自動駕駛功能，如同Tesla 汽車自動駕駛功能，可達到機器加工自動化

手機遠端操作

LSN 載重自動調機

CCD 監視

M216

智慧捲屑

AFC自動進給率控制

One & Only

Mechanism Design

test

Self-made Hybrid type 10,000 spindle

MW Series = High Rigidity + High Precision

Fantastic performance for various machining application

1. Z-axis four linear guideways three binding structure patented technology, two-way support provides 20% rigidity while cutting, bring you excellent performance.

2. Multiple choices of spindle: self-made gear head 8000 rpm, i-Tech hybrid 10000 rpm spindle design.

3. High quality self-made spindle to ensure spindle run-out within 5μm.

4. Comprehensive automatic angular head options to meet the diverse machining needs: A/C axis indexing 1 degree.

High Rigidity & Stability: Width Extension of Column Bases and W axis Features Twin Ballscrews / Servo Motors

test

W-axis features twin ballscrews and twin servo motors

test

Z axis nitrogen counterweight system

Optimized structure design can enhance cutting stability and dynamic precision

1. W-axis features twin ballscrews and twin servo motors: Positioning accuracy performed 0.03 mm, which is allowed for random positioning without restriction of machining area.

2. Firm columns deliver powerful cutting strength effectively: Width extension of column bases with 1250mm, which can reduce cutting vibration effectively.

3. Z axis nitrogen accumulator weight system: Reduce hydraulic tank oil temperature by 50% and save energy more than 20%.

High Efficiency：Comprehensive Angular Head and H/V Tool Magazine to Meet Various Machining Needs

test

Auto head changing cabin

test

Chain type tool magazine

Offer efficient and versatile machining

1. Can operate with auto universal head / 90 degree head / extension head.

2. The full automatic head changer is provided with the protective cover and independent head magazine.

3. The hydraulic cylinder is used for fast head changeover.

4. Each magazine is provided with an independent moving door that is opened only during the head changeover to prevent debris from contaminating heads.

5. Additional head magazines are also available.

The Same Level of Performance as Japanese Machines

test

1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines

2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 50% higher than Taiwanese peers


．Model：VW-734

．Spindle：Gear 6,000 rpm spindle 26kw

．Cutting material：S45C

test

Inspection standard reaches the pursuit of perfection

test

test

test

We guaranteed, the quality of each machine is almost zero defect

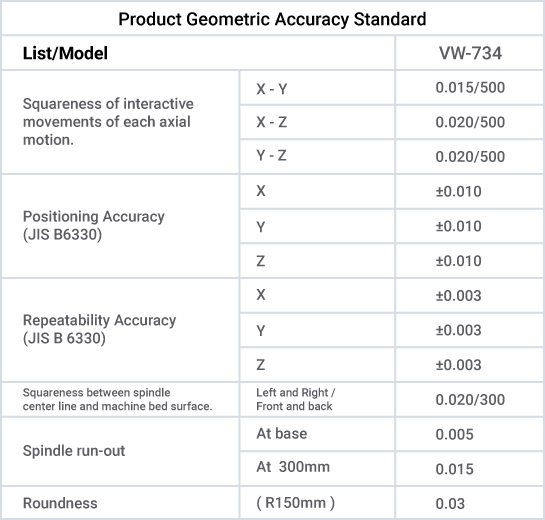

Tolerance of 3D contouring accuracy conforms to the standard:

Result of 114 spots test is approved within tolerance (± 0.02mm).


OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.

Demonstrate the ultimate cutting efficiency and fantastic accuracy & smoothness of mold

test

test

Learn More About

Specifications

Worktable

Worktable size

7000 x 2100

mm

Max. load (Average)

18000

kg

Travel

X axis travel

7050

mm

Y axis travel

3400

mm

Z axis travel

1000

mm

W axis travel

1500

mm

Spindle

Spindle nose taper

#50

Spindle speed (Gear)

6000 (opt.)

rpm

ATC

Capacity

A: 32 ( 40 / 62 )

pcs

Tool shank

BT-50 ( CAT50 / DIN / BBT50 )

Related models

VW-434

Linear guideway
